    BW160 Hydraulic Triplex Plunger Drill Rig Mud Pump , Pressure Washer Pump

    Ask Lasest Price
    Brand Name : JINZHOU SHITAN
    Model Number : BW160
    Certification : ISO
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 2000 sets per year
    Delivery Time : 7-12 days
    • Product Details
    • Company Profile

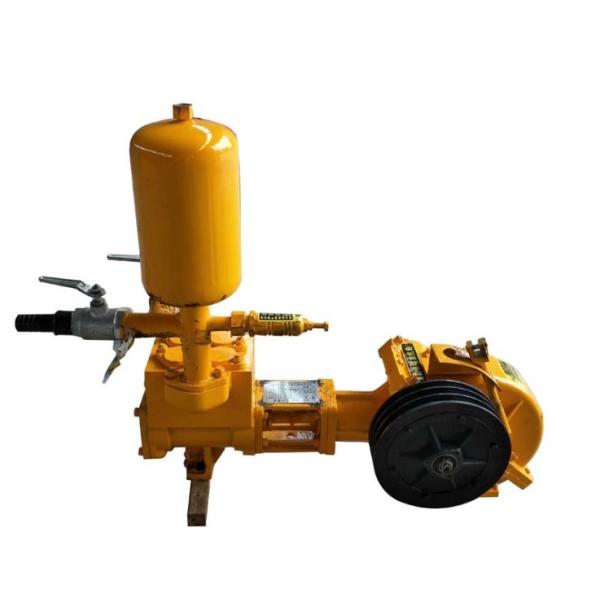

    BW160 Hydraulic Triplex Plunger Drill Rig Mud Pump , Pressure Washer Pump

    BW160 Hydraulic Triplex Plunger Drill Rig Mud Pump, pressure washer pump


    BW160 Hydraulic Triplex Plunger Drill Rig Mud Pump is a horizontal single-cylinder double-acting reciprocating piston pump, the pump head is equipped with four 40mm steel ball valve, thereby increasing the pressure. It is mainly used to provide flushing solution in blasting hole in geophysical prospecting. It can also be used to supply flushing liquid into well in bedrock drilling of engineering geological drilling rig. The pump has the characteristics of small volume, light weight and durability, and is more suitable for geological exploration.

    Parameter of BW160 Hydraulic Triplex Plunger Drill Rig Mud Pump

    Pump TypeHorizontal
    Type of actionDouble Acting
    cylinders1
    Cylinder diameter (mm)95
    Stroke (mm)85
    Number of reciprocations (times / minute)165
    Displacement (liters / min)160
    Working pressure (MPa)1.6
    Transmission shaft speed (r / min)951
    V - belt pulley diameter (mm)270
    V-belt pulley type and slot numberB-type × 3 slot
    Transmission power (kW)7.5
    Diameter of suction pipe (mm)ø45
    Drain pipe diameter (mm)ø38
    Overall dimensions (L* W* H) (mm)1110* 800*950
    Weight (not including power machine) (kg)136
    Motor Y132M-4 Power7.5KW
    Speed1440r / min
    Diesel Engine R180 Power5.67KW
    Diesel Engine Speed2600r / min
