    High Efficiency Soil Investigation Drilling Equipment Powerful For Industry ST-300

    Ask Lasest Price
    Brand Name : JINZHOU SHITAN
    Model Number : ST-300
    Certification : ISO
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 2000 sets per year
    Delivery Time : 7-12 days
    • Product Details
    • Company Profile

    High Efficiency Soil Investigation Drilling Equipment Powerful For Industry ST-300

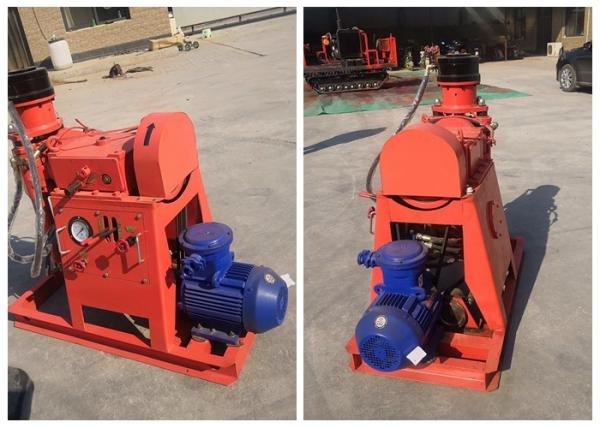

    Powerful And High Efficiency ST-300 Core Drilling Equipment

    Product Feature:


    1. This portable drilling well equipment is widely used for drink water well drilling

    2. The quality and the performance is safty and reliable

    3. The drilling depth is 60-80m, the drilling diameter is 70-300mm

    4. The weight and dimension of this machine is small, convenient and easy to operate, labor-saving, high efficiency and long usage life. Drilling depth 60-80m Drilling diameter 70-300mm Power Engine 7.5KW Rotary speed 200r/min Rotary table diameter 80mm Rotary table torque ***** Dimension(LXWXH) 1100X600X500mm Weight 0.135 t


    Product Parameter:


    Drilling depthm300-600
    Open hole calibermm300
    End hole calibermm75
    Drilling rodmmΦ60
    Drilling angle90°-65°
    Spindle
    Spindle forward speedr/min57-1024
    Spindle reverse speedr/min45-212
    Spindle strokemm560
    Spindle inner diametermm96
    Spindle lifting capacityKG6000
    Hoist
    Single line lifting speedm/s0.515 0.894 1.421 1.948
    Hug floodgate belt widthmm90
    Tightrope calibermm12.5 or 14
    Hoist single line lifting capacityKG3000
    Reel calibermm200
    Reel cubic measurem30
    Mud pump
    Horizontal double actuator
    DisplacementL/min200,125
    Triangle conveyer belt typeB×5
    Work pressureMpa4.6
    Water inlet calibermm65
    Water to exit calibermm37
    Oil pump
    Duplex gear oil pump F532/F314
    Front displacement,pressure32L/min 20Mpa
    Behind displacement,pressure14L/min 20Mpa
    Drilling rig Power
    Diesel engineHp395Kz 27HP
    Electric motorKWY180L-4 22KW
