    260 Meters Pneumatic Drilling Rig Crawler Mounted Water Well Machine Tunnel

    Ask Lasest Price
    Brand Name : SHITAN
    Model Number : ST260
    Certification : ISO
    Payment Terms : L/C, D/P, D/P, T/T, Western Union
    Supply Ability : 1000/month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    260 Meters Pneumatic Drilling Rig Crawler Mounted Water Well Machine Tunnel

    260 Meters Pneumatic Crawler Mounted Water Well Drilling Machine Tunnel Drilling Rig​

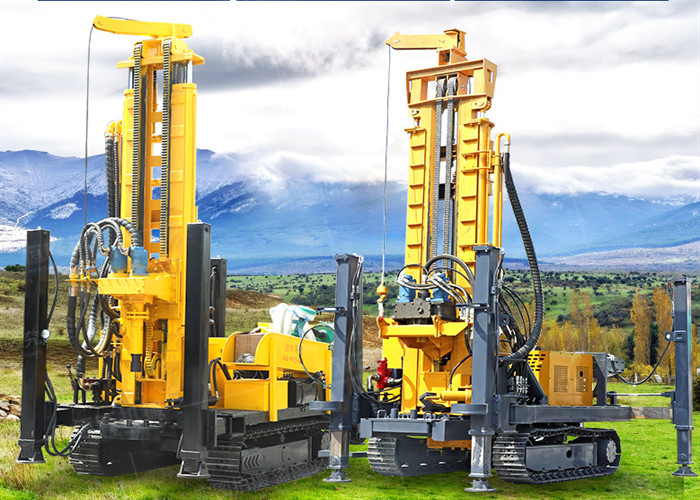

    Brief introduction of ST-260 Water Well Drilling Rig


    The Pneumatic Water Well Drilling Rig drilling speed:30-40m/h for hard rock

    ST260 series water well drilling rig is a lightweight, efficient and multifunctional drilling equipment, The water well drilling rig is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. Pneumatic well drill is especially suitable for water intake in mountainous and rocky strata.


    ST-260 Water Well Drilling Rig parameters


    Drilling Depth260m
    Dia.holeφ105-260mm
    Advance Length one time6.6m
    Working pressure1.7-3.0MPa
    Air consumption17-35m³/min
    Length of rod1.5m,2m,3m,6m
    Dia. Of rodφ76, φ89,φ102,φ114
    Lifting power24T
    Rotation torque8500-11000N.m
    Rotation Speed40-70r/min
    Diesel EngineYuchai
    Engine Power85Kw/2200rpm
    Travelling speed0-2.5 Km/h
    Climb capacity30°
    Weight9000kgs
    Dimension5900x2000x2850mm
    ApplicationComplicated geological conditions:Rock,Mud,Sand etc.
    Drilling WayTop drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling
    Dth Hammer4",5",6",8" Drill hammer or CIR110, 130, 150,170

    Video copy of pneumatic 260 drilling rig


    Now let's talk about this water well drilling platform. This part is pneumatic switch, ROP meter, water temperature, oil and battery, followed by pressure gauges of three pumps. Four operating rods are used during well drilling. Next are propulsion pressure adjustment and propulsion speed adjustment. They are used together. There is a rod for controlling tower lifting, a rod for unloading drill pipe, a winch lifting impactor, and the next two operating rods are the rotation of power head, Fast rotation, forward rotation and reverse rotation, the other is the lifting of tower parts, fast descent and fast entry, and the other two rods are power heads to control slow, fast and forward rotation during drilling


    FAQ


    Q 1: What kind of drilling rig do you have?

    A: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement .

    Q 2: Where is the address of your company?

    A: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China

    Q 3: Are you a manufacturer or a trading company?

    A:We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China.

    Q 4: How long is your delivery time?

    A: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance.

    Q 5: How long is the warranty of your well drilling rig?

    A: Except for consumable spare parts, the whole machine shall be one year.

    Q6: How long can your air compressor be used?

    A: Normally more than 10 years.

    Q 7: What are the terms of payment?

    A: TT, Western Union transfer.

    Q8, Can you provide us with the documents for customs clearance?

    A: Of course. We will send you commercial invoice, sales contract, packing list, bill of lading (FOB or CFR, CIF terms), insurance policy (if CIF terms), and certificate of origin if you need it

    Q9: How is your customer service?

    A: 24-hour online service. The 48 hour problem was solved (except in special cases).

    Q10: How about your after-sales service?

    A: 1. Provide customers with online installation and commissioning instructions.

    2. Well trained engineers can serve overseas. (non epidemic impact)
