400m Crawler Pneumatic Rotary Water Well Drilling Rig Machine Prices For Sale/Drilling Rig​

Introduction of crawler type Crawler Mounted Drill Rig

Water and air drilling rig is an efficient and multifunctional drilling equipment. It is mainly suitable for drilling water wells, agricultural irrigation wells, geothermal air conditioning holes and other wells, especially suitable for water intake projects in mountainous areas and rock formations. . The efficiency is ten times higher than that of traditional rotary drilling rigs, and the economic benefits created for users are extremely considerable. In particular, it solves the difficulty in drilling the soil layer with air DTH hammer, and the construction problem of the rotary drilling rig in the hard rock layer, gravel and pebble layer. It can work efficiently under various geological structures and realize the perfect combination of water drilling and air drilling.

Parameters of crawler type Crawler Mounted Drill Rig

Product Name	Pneumatic Drilling Rig
Model	ST400
Drilling Diameter	105-300mm
Drilling Depth	400m
One-time Advance Length of the Drill	3000/6000mm
Walking Speed	6km/h
Climbing Ability	25
Min. Ground Clearance	300mm
Working Air Pressure	1.7-3.5Mpa
Air Consumption	17-35m3/min
Main Power	100KW/6Cylinder
Rotation	45-75rpm
Rotary Torque	9000-10000N.m
Dimension	6m×2m×2.5m
Total Weight	10T

Operation of well drilling machine when adding drill pipe

1. When the depth of one drill pipe needs to be connected after drilling, stop the propulsion first, then stop the rotation, and turn off the cooling water;
2. Stop the rotation and operate the fast forward and backward handle to the fast backward position to make the chuck quickly back in place; 3. The gyrator reverses, at the same time, it retreats the feed oil cylinder to rotate the water braid shaft away from the drill pipe;
4. Operate the clamping handle to make the gripper clamp the drill pipe and open the micro regulating flow valve (right rotation)
5. Connect the drill pipe to be added to the previous drill pipe, and the rotator moves forward while rotating. When the trapezoidal conical thread of the water braid shaft is in screw contact with the conical thread of the newly added drill pipe, immediately operate the gripper handle, loosen the gripper and complete the drill pipe addition.

Advantages

1. Guangxi Yuchai diesel engine( cummins engine for option), strong power;

2. The patented design of the composite boom, double cylinder lift, long trip, high tonnage

3. Each rig is equipped with stoppers to raise the big arm to protect the safety of the cylinder.

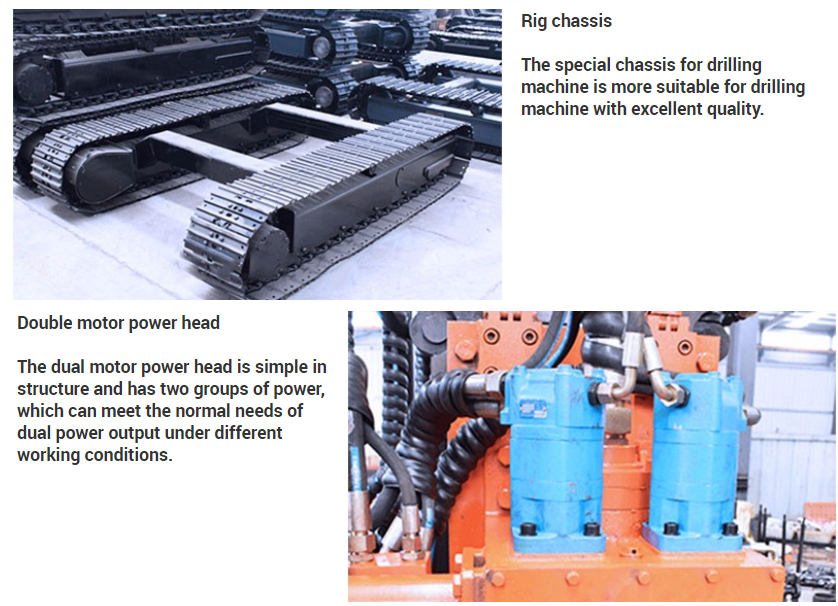

4. Rig chassis: professional excavator chassis, durable, large bearing capacity, chain width, hard road damage;

5. Parallel transmission design, separate oil pump, sufficient power supply, reasonable distribution, unique design of hydraulic system

6. The traveling motor is equipped with a gear box, which is durable and has a long service life.

7. Dustfall device: Effectively reduce dust pollution damage, aiming at pit and tunnel construction

8. Fast distribution valve: speed three gear up to 70 rpm, basic dual-use water vapor function

Jinzhou City Shitan Machinery Equipment CO. LTD.  is a professional production and

processing company for core drilling rigs, crawler drilling rigs, various track chassis, various

types of mud pumps, various track transport vehicles, etc. It is one of the outstanding

manufacturers of similar products in North China. Strong technical force. The modern productiona

equipment and complete testing means are specialized in the development, manufacture and

marketing of drilling rigs.

To ensure the quality and stability of the machine, we use the most advanced production and testing

equipment, Made from high quality materials, with fashion and compact design, that keeps our drilling

rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive

cost performance. Our water drilling rigs have received the real market validation as the majority of our

customer’s positive feedback.

The company's main products are rigs: XY-1, XY-1A, XY-1B, GK-180, GK-200, DPP-100 and other series

of drilling rigs: gearbox assemblies and gyro assemblies for various rigs, Winch assembly, reducer assembly,

pump assembly. Drilling tools: sedimentary pipe joints, casing joints, casing couplings, drill pipe joints, casing

core pipes, lifters, automatic drop hammers, earth borrowers, standard penetrations, forks, lock joints, alloy drill

bits Hundreds of drilling tools, such as steel sand drill bits, core pipe joints, drill pipe pliers, and casing pliers.

Jinzhou City Shitan Mechinery Equipment CO. LTD. has a complete and scientific quality management

system. The integrity, strength and product quality of Jinzhou Stone Exploration Machinery Co., Ltd. have been

recognized by the industry. Welcome friends from all walks of life come to visit, guide and negotiate business!
