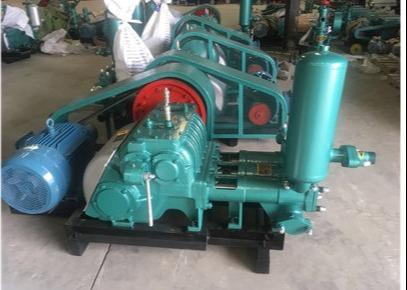

Horizontal Three Cylinder Ratio Single Acting Reciprocating Piston Pump BW 250 Drilling Mud Pump

Product Description:

BW-250 (grouting pump) mud pump is a horizontal three-cylinder reciprocating single-acting piston pump with two cylinder diameters and four speeds. Displacement and hole depth can be adjusted according to the use. It can be used with 1500m drilling rig. It can also be used for cement slurry filling. The mud pump consumes less energy, is flexible in operation, high quality and durable.BW-250 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1500 meter.

Product Parameter:

Product Main Features

BW250 mud pump is a horizontal triplex single-acting reciprocating piston pump. This pump is one of the principal equipment for drilling. It delivers enough volume circulating mud water of desired characteristics under pressure into the well to bring the rock clastic up to the ground, cool the drill bit lubricate the drill tool, and protect the wall of the well. So the function of the mud pump affects the efficiency of drilling and safety in production directly. BW250 Mud Pump is provided with two kinds of liner, 80mm is for core drilling of ordinary bore, and 65 mm is for core drilling of the small bore with a diamond bit. The pump can be driven by an electric motor, diesel engine, or hydraulic motor according to the requirement of the customer in the order. If needed, we can also equip wheels for you.

Applicable Mud Pump

It can be used for the transportation of high-viscosity fluids and the transportation of media containing hard suspended particles or fiber, and can be competent for the working conditions that other pump types cannot adapt to. Its flow is proportional to the speed. Its outstanding advantages are that it does not form eddy current when transporting medium, is insensitive to the viscosity of medium, and can transport high-viscosity medium

Jinzhou City Shitan Machinery Equipment CO. LTD.  is a professional production and

processing company for core drilling rigs, crawler drilling rigs, various track chassis, various

types of mud pumps, various track transport vehicles, etc. It is one of the outstanding

manufacturers of similar products in North China. Strong technical force. The modern productiona

equipment and complete testing means are specialized in the development, manufacture and

marketing of drilling rigs.

To ensure the quality and stability of the machine, we use the most advanced production and testing

equipment, Made from high quality materials, with fashion and compact design, that keeps our drilling

rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive

cost performance. Our water drilling rigs have received the real market validation as the majority of our

customer’s positive feedback.

The company's main products are rigs: XY-1, XY-1A, XY-1B, GK-180, GK-200, DPP-100 and other series

of drilling rigs: gearbox assemblies and gyro assemblies for various rigs, Winch assembly, reducer assembly,

pump assembly. Drilling tools: sedimentary pipe joints, casing joints, casing couplings, drill pipe joints, casing

core pipes, lifters, automatic drop hammers, earth borrowers, standard penetrations, forks, lock joints, alloy drill

bits Hundreds of drilling tools, such as steel sand drill bits, core pipe joints, drill pipe pliers, and casing pliers.

Jinzhou City Shitan Mechinery Equipment CO. LTD. has a complete and scientific quality management

system. The integrity, strength and product quality of Jinzhou Stone Exploration Machinery Co., Ltd. have been

recognized by the industry. Welcome friends from all walks of life come to visit, guide and negotiate business!
